Securing Containers: Docker Hardening 101

This blog is part of my best practices for deploying an application in a containerized environment, taking into consideration the various security measures that have been implemented for seamless integration. I might further explain the impact of Ansible playbooks used for automation of deployment of containers.

Docker Introduction

Docker is used to package and containerized applications and ship them and to run them anywhere, anytime and any number of times.

• Let me explain the usage of Docker with an example. Most of us have faced the ModuleNotFoundError error because of missing Python packages or libraries. This is when Docker comes into play, providing an environment with all these dependencies installed. One could simply find an image on Docker Hub, which includes a Linux machine with all the required Python dependencies, ensuring that the application runs consistently across different systems solving the "it works on my machine problem".
• Now that we understand the usage of docker, we need to understand how docker works.

How Docker works?

• An operating system is just the kernel plus the essential software layered over hardware.
• Let’s take different Linux distros, such as Ubuntu (based on Debian) and Red Hat. While these may have different software and packages, they all use the same kernel. Distros are like humans: they may vary a lot on the outside but contain the same kernel inside (like human body parts).
• Docker essentially uses this concept, using the kernel of the host system and installs multiple containers or instances over it. With Docker, one can have a single Linux host and install multiple Linux containers or instances over it.

The following are some basic components of Docker:

• Images: Executable code built in layers. A read only template or recipe for a container and can’t be modified.
• Containers: Containers are created from images and are isolated from each others. These are the environments we run, but they can be started/stopped.
• Docker Daemon: It does all the real work behind containers, from building to running and delivery.
• Docker Client: The component you use to issue instructions, such as the Docker CLI.
• Docker Hub: A repository of Docker images.

Dockerfile and Docker Compose

A Dockerfile a script that basically automates the creation of a Docker image using multiple instructions, which in turn is reponsible for creating containers. One such instruction is called the ENTRYPOINT which specifies the commands that will always run whenever a new container is created. The below shows a simple Dockerfile that runs an entrypoint.sh script.

1
FROM ubuntu:22.04
2

3
ENV MY_ENV_VAR="Hello, World!"
4

5
RUN apt-get update && apt-get install -y bash
6

7
COPY entrypoint.sh /entrypoint.sh
8

9
# Make the entrypoint script executable
10
RUN chmod +x /entrypoint.sh
11

12
# Set the entrypoint to execute the script
13
ENTRYPOINT ["/entrypoint.sh"]

#!/bin/bash

# Print the environment variable and a hello message
echo "My environment variable is: $MY_ENV_VAR"
echo "Hello, World!"

In the above case basically the Dockerfile uses the Ubuntu image and install bash shell to run commands and copies the entrypoint.sh to every container that is created, basically setting it as an entrypoint. In our case, the script prints the environment variable inside the container and displays the message “Hello World!”.

Docker Compose is a tool that helps you easily set up and run apps that use more than one container. It lets you define everything your app needs in one file and start it all with a single command, making development and deployment much simpler.

# Start all services defined in docker-compose.yml
docker-compose up

# Start services in the background (detached mode)
docker-compose up -d

# Stop all running containers
docker-compose down

# View logs of your containers
docker-compose logs

# Check running services
docker-compose ps

Example: Why You Need Docker Compose in Real Life

Imagine you’re building a web app that needs:

• A frontend (like React or HTML/CSS)
• A backend (like a Flask or Node.js server)
• A database (like MySQL or MongoDB)

Instead of starting each one manually with separate docker run commands, you can define them all in a docker-compose.yml file like so:

1
version: '3'
2
services:
3
  web:
4
    build: ./web
5
    ports:
6
      - "3000:3000"
7
  backend:
8
    build: ./backend
9
    ports:
10
      - "5000:5000"
11
    depends_on:
12
      - db
13
  db:
14
    image: mysql:5.7
15
    environment:
16
      MYSQL_ROOT_PASSWORD: password

Then you can just run

docker-compose up

All the services will be up and talking to each other.

Note: Docker networking allows containers to communicate with each other, the host system, and external networks.

Background

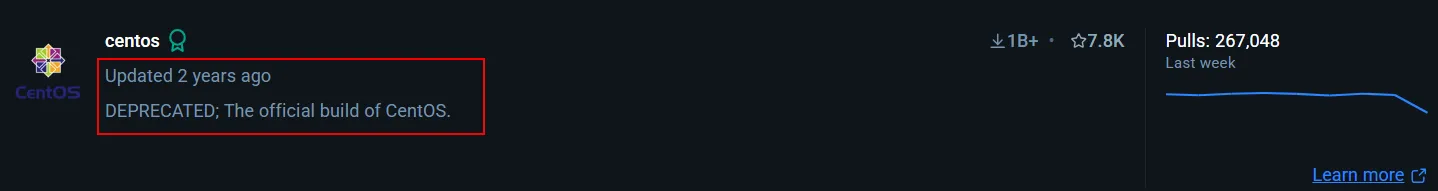

Back the case study where we were provided a vulnerable CentOS version 7 Docker image, which was deprecated in 2022, was initially used to host a web application powered by an Nginx-based web server. The CentOS container also hosted the application logic, while a separate MariaDB container acted as the database server. The end goal being industry-grade container hardening of the containers NOT THE APPLICATION RUNNING ON IT.

Firstly, due to CentOS’s deprecation, the infrastructure was transitioned to a more current and supported Ubuntu base image, version 22.04.3 LTS "Jammy Jellyfish".

The following changes had to be made in the configuration files of the application also bolstering the overall posture:

• Replacing nginx user with the www-data user.
• Updating the process manager to php8.1-fpm handle web requests for PHP application.
• Remapping the default port of the web application to 8081 from 80.

Further the container provided wasn’t persistent which impact 2 of the 3 CIA triads (Integrity and Availability)

The below was my implementation to establish persistence using Ansible for automation:

1
---
2
- name: Automate Docker tasks and manage MariaDB user passwords with Ansible
3
  hosts: localhost
4
  vars_files:
5
    - secrets.yml  # Include a variable file that contains 'db_password'
6

7
  tasks:
10 collapsed lines
8
    - name: Start Docker containers
9
      community.docker.docker_compose:  # Uses the docker_compose module to manage Docker services
10
        project_src: /root/Desktop/pma  # The location of the docker-compose project files
11
        state: present  # Ensures that the containers are running
12
        build: yes  # Builds the images before starting if necessary
13

14
    - name: Wait for the database container to start
15
      pause:  # Pause the execution of the playbook for a set number of seconds
16
        seconds: 10  # The duration of the pause to allow the database container to fully start
17

18
    - name: Check if 'suggestion' table exists
19
      community.docker.docker_container_exec:  # Executes a command inside a running container
20
        container: u5579496_csvs_dbserver_c  # The name of the container to execute the command in
21
        command: "mysql -uroot -p\"{{ db_password }}\" -e \"USE csvs23db; SHOW TABLES LIKE 'suggestion';\""  # Command to check if the 'suggestion' table exists in the database
22
      register: check_table  # Store the output of this task in the variable 'check_table' for conditional checks later
23

24
    - name: Execute SQL script if 'suggestion' table does not exist
25
      community.docker.docker_container_exec:  # Executes a command inside a running container
26
        container: u5579496_csvs_dbserver_c  # The name of the container to execute the command in
27
        command: "mysql -uroot -p\"{{ db_password }}\" csvs23db"  # Command to execute SQL statements in the database
28
        stdin: "{{ lookup('file', '../dbserver/sqlconfig/csvs23db.sql') }}"  # Read SQL commands from the specified file and pass it to the stdin of the command
29
      when: "'suggestion' not in check_table.stdout"  # Condition to only run this task if the 'suggestion' table does not exist
30

8 collapsed lines
31
    - name: Ensure 'root' user's password is set correctly in MariaDB
32
      mysql_user:  # Uses the mysql_user module to manage MySQL user accounts
33
        login_user: root  # The user to log in as
34
        login_password: "{{ db_password }}"  # The password for the user to log in with
35
        name: root  # The name of the user to manage
36
        password: "{{ db_password }}"  # The desired password for the 'root' user
37
        host_all: yes  # Apply password change for 'root' user across all hosts
38
      when: "'suggestion' in check_table.stdout or 'suggestion' not in check_table.stdout"  # This condition is redundant as it always evaluates to true; hence this task always runs

Ansible playbooks allow sets of tasks to be scripted so they can be run routinely at points in time. This is useful for combining various setup tasks, such as adding user accounts and settings to a new server or updating large numbers of machines at once. We’ll be focussing on controlling Node actions via Ansible Playbooks. Keep in mind this can also be done using ad-hoc commands but they only offer a situation where we would want to run a command on multiple servers.

Although it is quite common to run playbooks with elevated privileges, it is not always necessary. Security-aware administrators will set up dedicated users for Ansible tasks and limit their access to only what they need.

Playbooks are written using the YAML markup language. Although, I’m aware that this itself can expand threat landscape for attackers as there are ways to harvest credentials from the ansible-vault using John.

Securing the Docker Image and Containers

Following the defense-in-depth principle. The layers being during build, pre-production, and runtime process.

1. Setting the DOCKER_CONTENT_TRUST=1 ensures docker images and their signatures are verified before use.
2. Specifying specific tag like mariadb:10 and ubuntu:22.04 in the Dockerfile to avoid unexpected changes.
3. Configuring the container networks which are by default binded to all the network interfaces.
4. Stripping excessive container capabilities, which are unnecessary for the basic functionality of the application, becomes apparent when initiating a child process within an independent namespace, as the current session lacks assigned capabilities.
5. In a Linux docker container, a process can communicate with another process by allocating them a shared memory space. Basically, the container shouldn’t be able to access one another’s memory and should given their own IPC namespaces.
6. Secure computing mode (seccomp) is used to disable actions within a container. The default seccomp profile disables around 44 syscalls.
7. AppArmor consists of Linux security modules that can implement Mandatory Access Controls and Discretionary Access Controls. However, the permissions and use cases for each of these differ due to the base images, we could only implement it extensively on the webserver due to the write-operations database server performs on Linux file systems.
8. Control groups (cgroup) limit the resources that have been allocated to a particular container. From a security perspective, it ensures that one process doesn’t hog up the resources of another process impacting the behaviour. By default, a process inherits the cgroups of its parents. Hence, we tasked the Linux kernel to allocate certain cgroups from the pseudo-filesystems in our hosts. The setting in our case allocates memory limit, memory reservation, CPU resources and Process IDs to the containers.

To improve overall system security and operational monitoring, I implemented some additional measures:

• Fluentd for logging and monitoring, as security incidents can only be effectively tracked with proper audit trails. By default, Docker containers log only the STDOUT/STDERR, which is limited for comprehensive monitoring.
• Registry Analysis from Container Blobs: Adversaries can extract sensitive information, such as passwords, by analyzing container images and registry blobs. Storing passwords in Dockerfile layers is unsafe, as they can be easily retrieved.

Scanning and Auditing Containers

Writing audit rules and test cases can vary depending on the usecase for the containers and can be included in the audit files located in /etc/audit directory. These audit rules help track events related to container activity, providing insights into potential security vulnerabilities and breaches. Further, open-source tools like docker-bench-security, Trivy, and Lynis can be used to assess container security.

• docker-bench-security evaluates Docker containers against security best practices, highlighting misconfigurations and vulnerabilities.

• Trivy is a simple yet comprehensive vulnerability scanner for containers, scanning both images and dependencies for known vulnerabilities.

• Lynis is a security auditing tool that can audit not only containers but also the entire system, ensuring the host and container security practices are up to standard.

These tools, combined with regular audits, ensure that a secure cloud infrastructure starts with secure containers.

I understand that I might’ve created 10 problems to solve one, but one thing is clear that I can build, configure and harden my own Docker containers.
